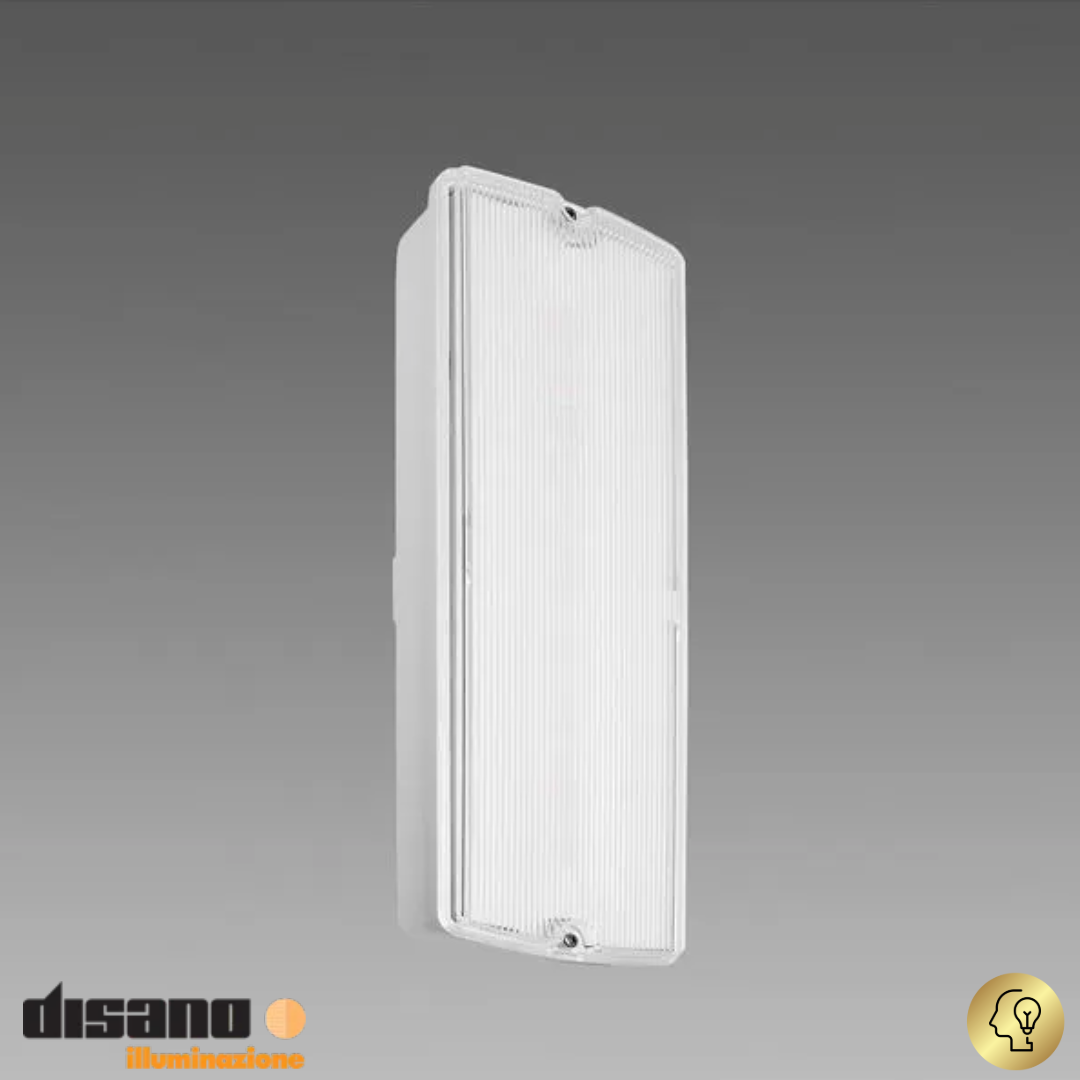

Lampa de siguranta 622 Safety 2.0 - 1h S.A.

Lampa de siguranta 622 Safety 2.0 - 1h S.A.

1.662,00 lei RON
1.662,00 lei RON
Vânzare Stoc epuizat
Taxe incluse.

Pretul include TVA si taxa de timbru verde

!!! Produs in stock la producator. Livrare in maxim 14 zile !!!

Caracteristica principală a acestui dispozitiv este noua tehnologie de schimbare a culorii. Cu două întrerupătoare încorporate puteți:• selecta 2 temperaturi de culoare diferite, ajustându-vă la majoritatea instalațiilor: • selectați tipul de flux luminos de ieșire și putere.

Fluxul luminos raportat este fluxul emis de sursa de lumină cu o toleranță de ± 10% față de valoarea indicată. Coloana W tot indică puterea totală absorbită de sistem fără a depăși 10% din valoarea indicată.



Technical data


Manufacturer Disano Illuminazione
Short product code 622
Order code 112546-00
European Article Number (EAN) 8012952187755
Product name Safety 2.0 - 1h S.A.
Housing ABS. Diffuser: in polycarbonate, shatterproof and V2 self-extinguishing, UV stablised, anti-yellowing.
Colour - Housing White
Wiring name CLD-CEM-L
Wiring Emergency S.E.: In case of 'black-out' the lamp turns on.It stays on from 60 to 180 min. and charges in 12 hours.Emergency S.A.: In case of 'black-out' the lamp never goes out.It stays on from 60 to 180 min. and charges in 12 hours.
Nominal frequency 50 Hz
Voltage type AC
Min Voltage (V) 220 V
Max Voltage (V) 240 V
Min Frequency (Hz) 50 Hz
Max Frequency (Hz) 60 Hz
Controllability None
Power factor ≥ 0.9
Equipment Standard: equipped with switches for regulating flow and color temperature (CCT); 5700K standard configuration and maximum power/flow values.
Light source LED
Output luminous flux 400 lm
Total system power 7 W
CCT 5700 K
CRI 80
Luminous efficacy 57 lm/W
Ambient temperature - max 30 °C
Ambient temperature - min 5 °C
Lumen maintenance Ta 25° (L) 80
Failure rate (Ta=25°C) (B) 20
LED Rated Life - (h) 25000 hr
Photobiological risk RG0
Regulations EN60598-1. With degree of protection according to EN60529.
Markings - Certifications CE
Electrical insulation class Class II
IP (Total) 65
IK IK08

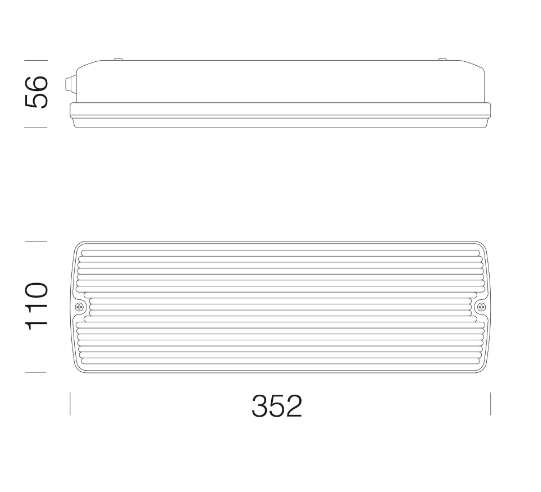

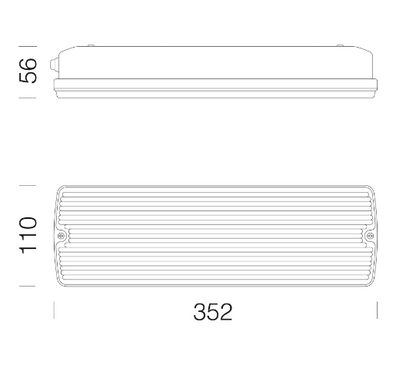

Luminaire height 56 mm
Luminaire Width 110 mm
Luminaire length 352 mm
Net weight 1 kg
Warranty 3 yr
Emergency - S.A./S.E. S.A.
Emergency operation time 1h
