Recessed lamp 830 Rodi UGR<19

!!! SHIPS IN 2 WEEKS !!!

ledguru.ro

150242-00

16 In Stock

Regular price €46,41

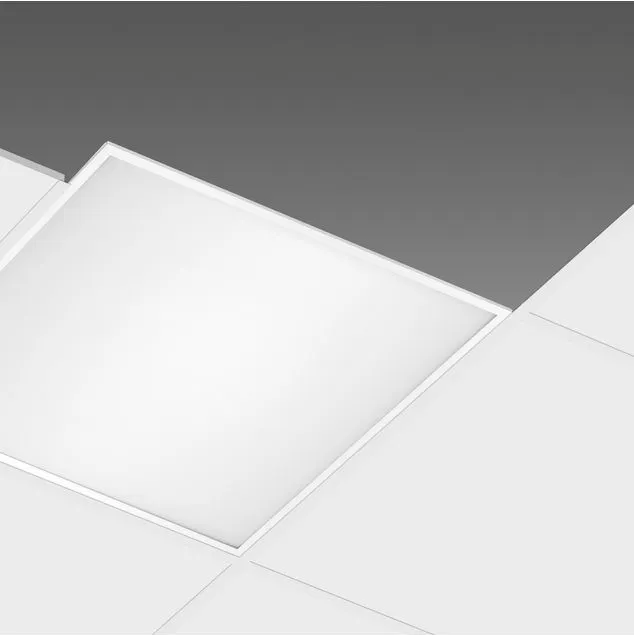

Rodi is a new recessed LED ceiling fixture in the backlight version that offers a totally innovative way to light up spaces. With a very slim shape and energy-efficient LEDs, Rodi produces bright, diffused light, and keeps energy consumption extremely low, reaffirming itself as the ideal luminaire for functional and...

Rodi is a new recessed LED ceiling fixture in the backlight version that offers a totally innovative way to light up spaces. With a very slim shape and energy-efficient LEDs, Rodi produces bright, diffused light, and keeps energy consumption extremely low, reaffirming itself as the ideal luminaire for functional and general lighting applications.

Download technical sheet ➡️

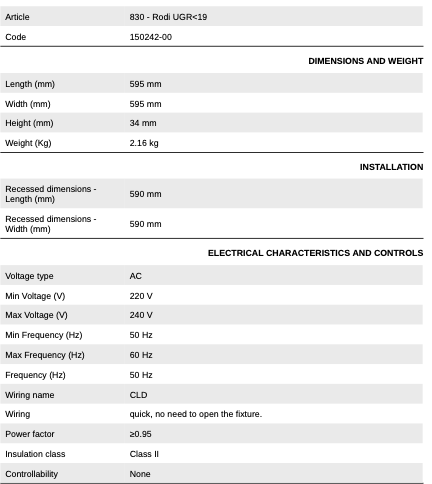

Manufacturer Disano Illuminazione
Short product code 830
Order code 150242-00
European Article Number (EAN) 8012952164503
Product name Rodi UGR<19
Housing body in steel sheet and frame in aluminium.
Colour - Housing White
Diffuser in high transmittance prismatic technopolymer.
UGR UGR<19, according to standard EN 12464.
Wiring name CLD
Wiring quick, no need to open the fixture.
Nominal frequency 50 Hz
Voltage type AC
Min Voltage (V) 220 V
Max Voltage (V) 240 V
Min Frequency (Hz) 50 Hz
Max Frequency (Hz) 60 Hz
Controllability None
Low flicker luminaire with very low flicker: evenly distributed light for greater visual safety.
Power factor ≥ 0.95
Equipment Ceiling lighting fixture with external driver; it can be easily housed in false ceilings.
On request - DIMM DALI CLD-D wiring (subcode -0041) - CLD-D (PUSH) (subcode -0045)
Light source LED
Output luminous flux 4002 lm
Total system power 39 W
CCT 4000 K
CRI 80
Colour consistency (MacAdam Ellipse) SDCM3
Luminous efficacy 103 lm/W
Lumen maintenance Ta 25° (L) 80
Failure rate (Ta=25°C) (B) 20
LED Rated Life - (h) 50000 hr
Photobiological risk RG0
Regulations EN60598-1. With degree of protection according to EN60529.
Markings - Certifications CE, ENEC
Electrical insulation class Class II
IP (v.l.) 40
IP (v.a.) 20
IK IK06

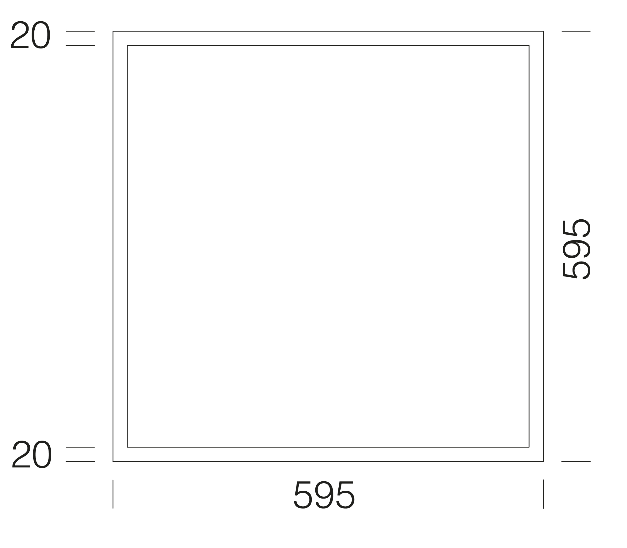

Luminaire height 34 mm
Luminaire Width 595 mm
Luminaire length 595 mm
Net weight 2.16 kg
Installation dimension - width 590 mm
Installation dimension - length 590 mm
Warranty 5 yr
Energy label E
